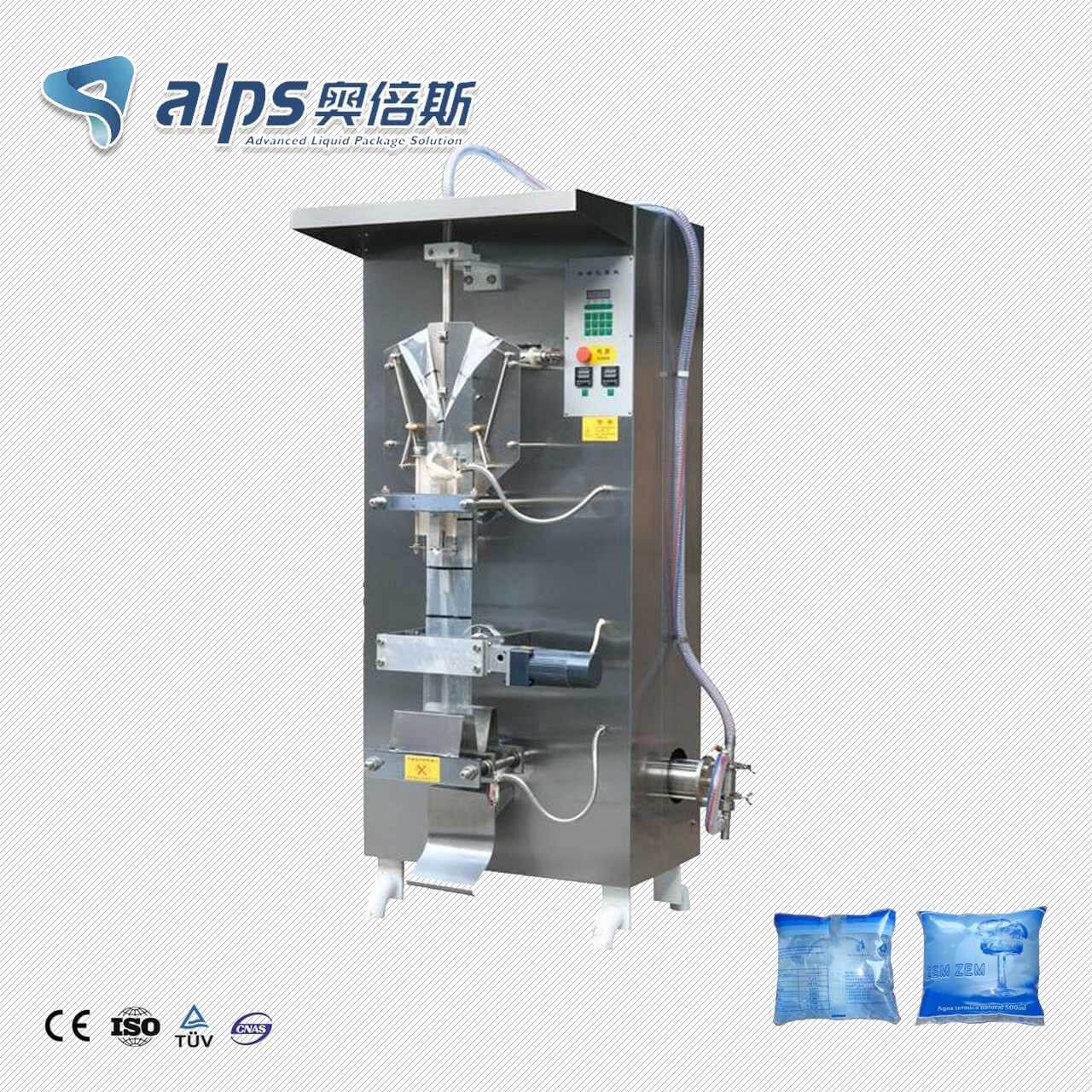

Sachet Water Filling Machine (Model : SYJ2000)

Sachet Water Filling Machine (Model : SYJ2000)

Capacity : 2000 bags per Hour Bottle Sizes :250ml ~1000ml Function :Bag making and filling

Quantity:

Introduction

Sachet filling machine is high precision packing machine and the most advanced liquid compound packing machine in china, which is standing, three side sealing and intermittent. It can automatically complete Bag-making, filling, sealing, printing, cutting and counting .Controlled by microprocessor and automatic photocell. It is widely used to pack all kinds of liquid without gas, especially soy, wine, vinegar, juice, soybean milk, peanut oil, vegetable oil, plant oil, mineral water and liquid chemical products.

Application :

Function :Sachet water filling machine
Suitable for: Water Sacet / Water pounch		Bottle sizes : 250ml ~ 1L
Filling system: Volumetric filling		Capacity: 2000BPH
Application: still water, pure water, RO water, mineral water, sparkling water, etc.

Technical Data

Name : Sachet water filling machine
Model	SJY2000
Capacity	2000 bags/hour
Packing weight	1-10kg
Packing size	L30-150×W60-160mm
Material of pack film	single layer plastic film
Weight	270kg
Overall dimensions	850×1350×1800mm
Material	Stainless steel
Filling type	Piston type
Total power	380V
Control Type	Automatic type

Details Description

Main Function:
1.Computer controlled, simple operation, easy to maintain,stable performance, reliable quality.
2.stepless speed regulate Packaging speed .
3.Use of specific technology control bags, do not need bag long-adjustable, make sure accurate bag length, convenient adjustment.

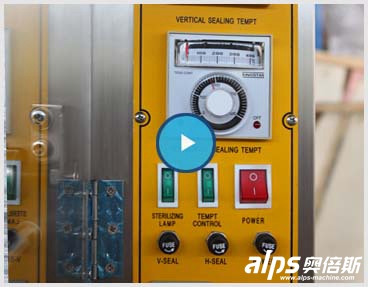

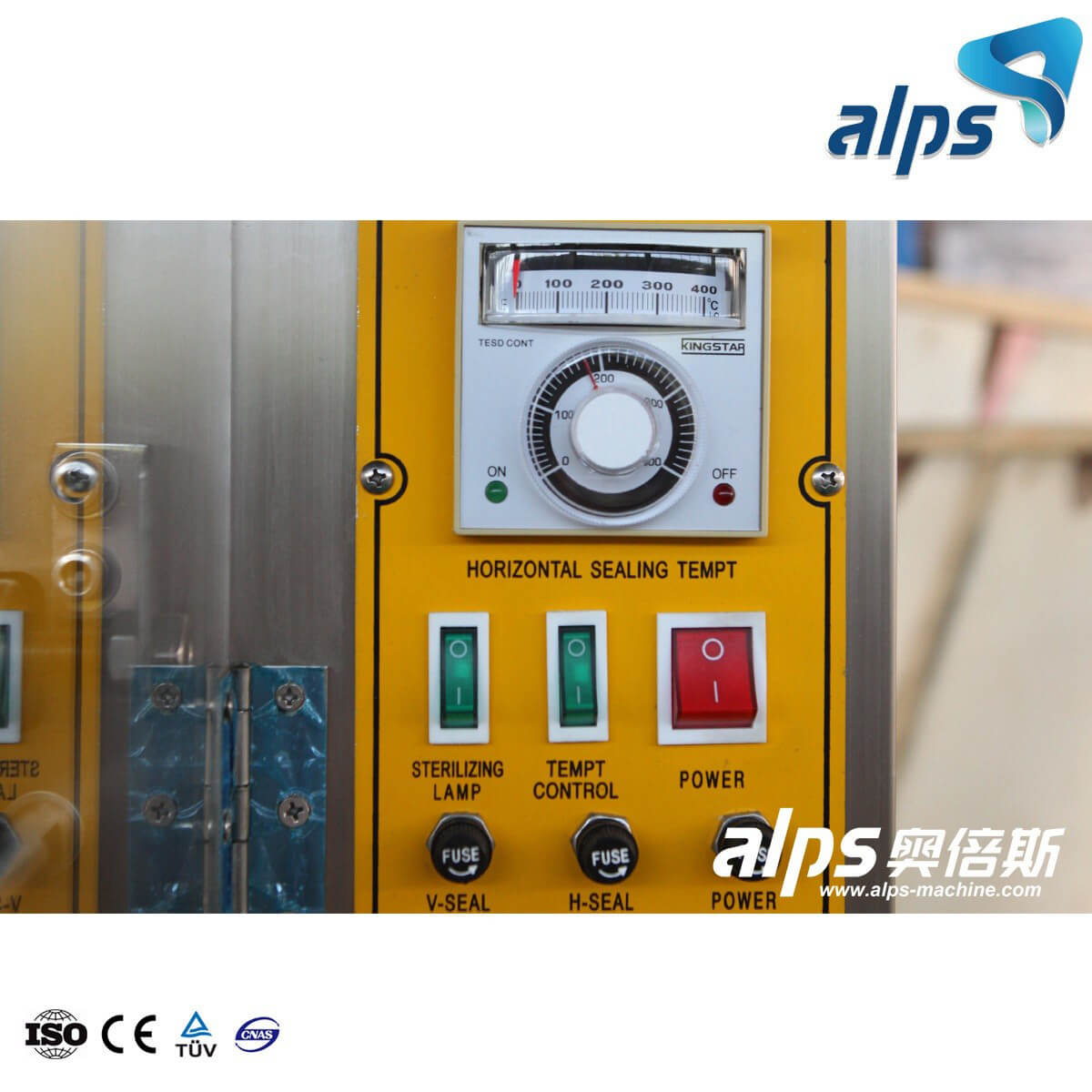

4.Intelligent temperature control device can control temperature heat sealing temperature to ensure the sealing quality.
5.Replace spare parts .can realize trilateral, quadrilateral sealing flat or pillow bag.
6.Unique photoelectric positioning technology to ensure that bag's colored logo integrity.
7.Packaging capacity within rated can be modified without limited.

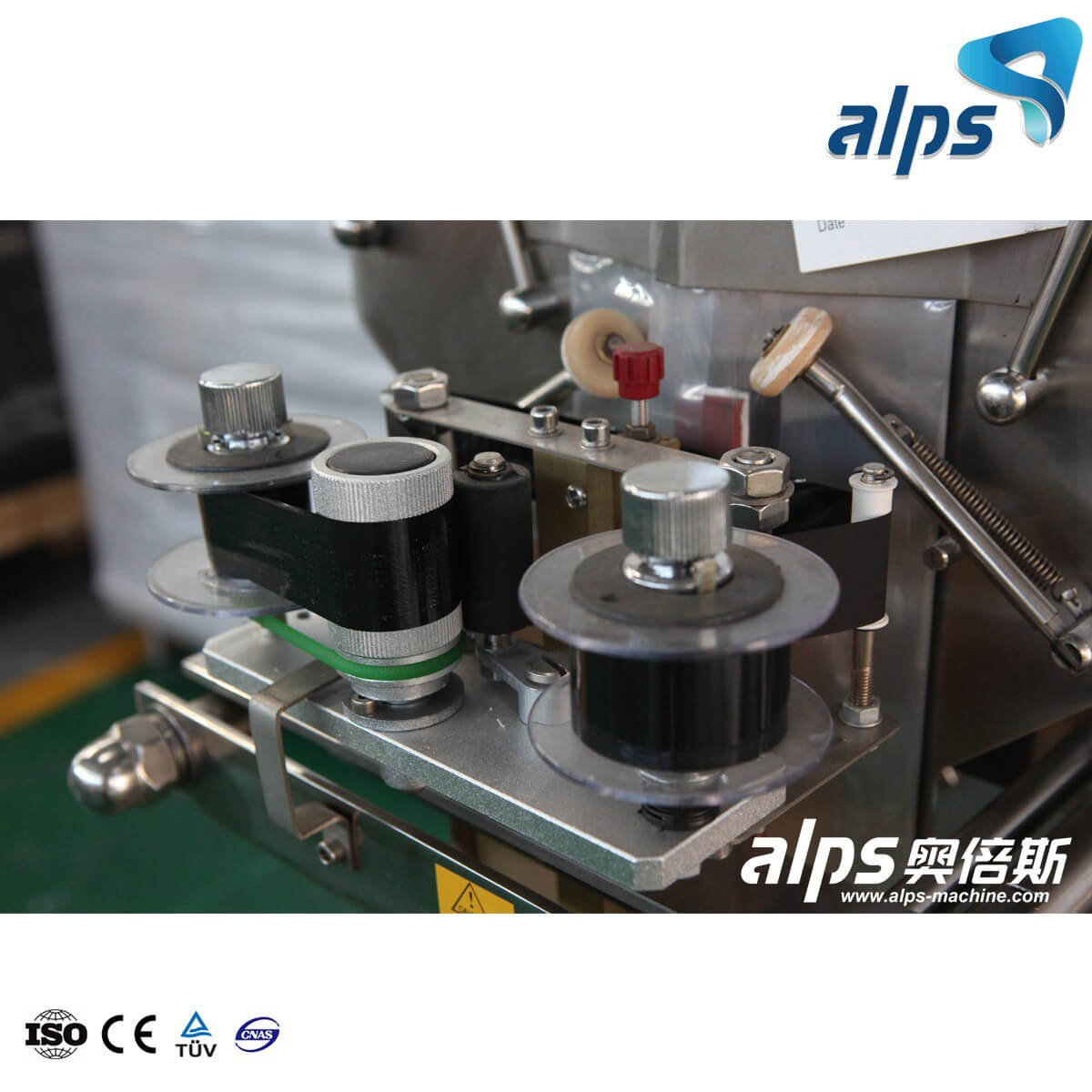

8.Automatic batch printing products, easy to use.
9.stainless-steel structure, in line with food and medicine packaging health requirements.
