Canned Filling Machine Production Line

Complete Canned Filling Machine Production Line

we provide the complete pop cans / tin can filling and package solution, from can depalletizer, can rinsing machine, can filling & sealing monoblock machine, leakage check, liquid nitrogen dosing machine, pasteurizer tunnel, blow dryer, carton package, film package system, which is widely used for the beverage, beer, juice, sauce industry and so on.

Date Information

Model	GD12-1	GD18-6	GD24-6	GD32-8	GD40-8
Capacity (500ml/can/h)	2000-3000	5000-6000	7000-8000	9000-10000	11000-13000
Can Size	150ml to 500ml (Special size can be customized)
Filling Temperature	0-4℃
Rated Power	5.5KW	6.5KW	7.8KW	8.5KW	9.2KW
Overall Size	280016002000mm	300017002000mm	320018002000mm	350019502000mm	380021502000mm
Weight	3000kgs	4000kgs	4800kgs	5200kgs	6200kgs

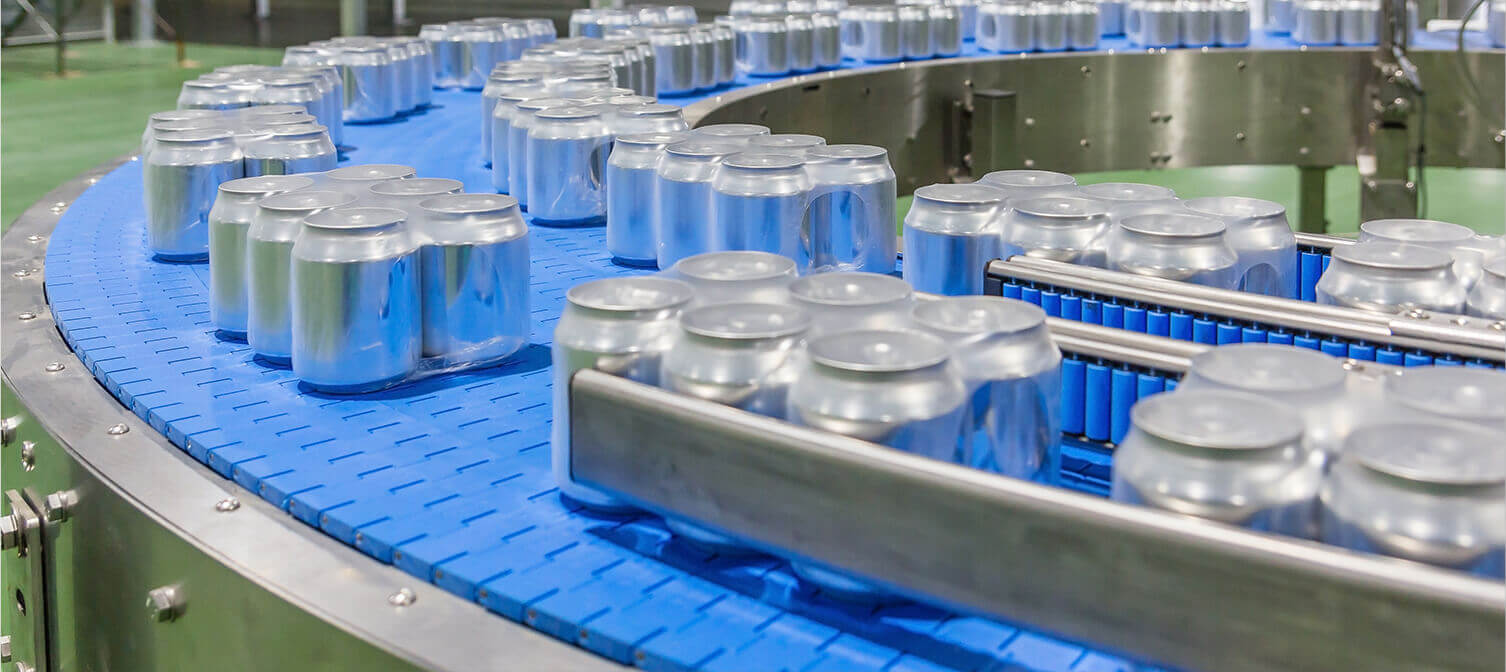

Watch The Video

CAD Configuration

Whole line introduction

Filling Machine

Widely Used

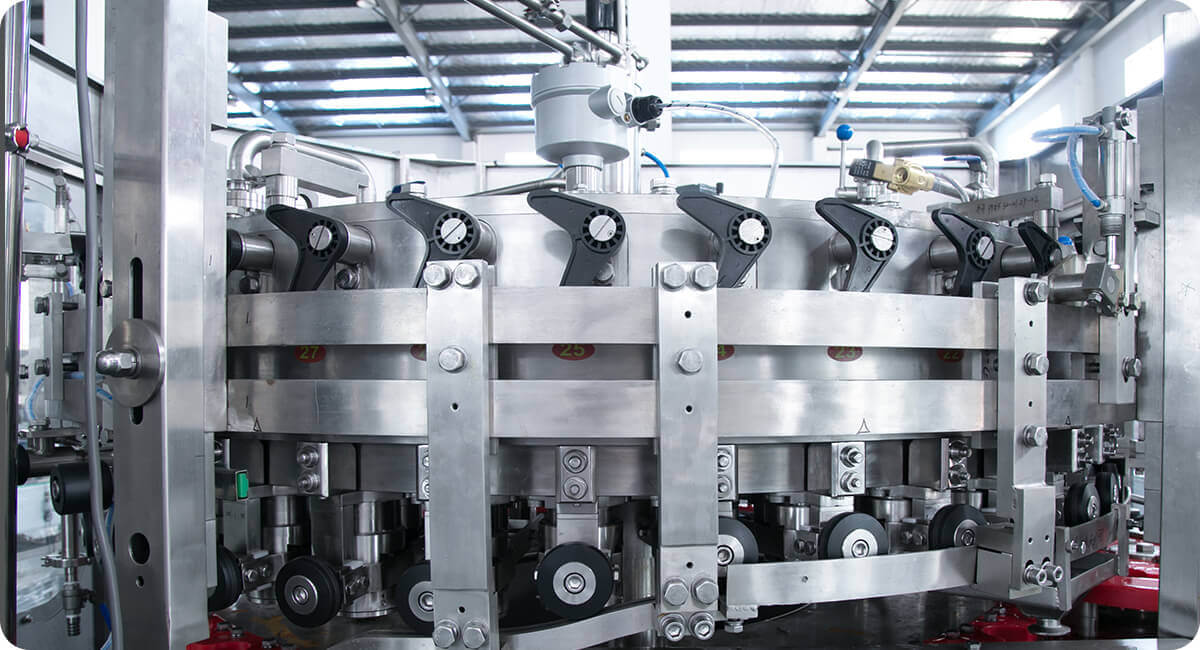

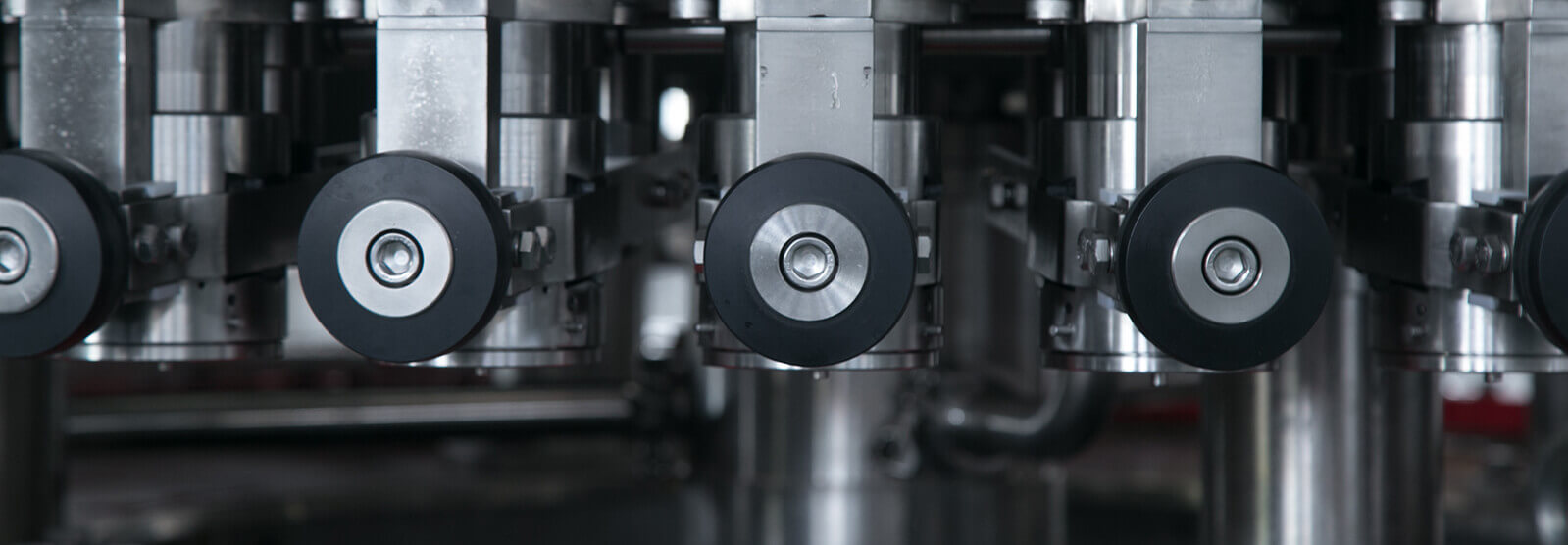

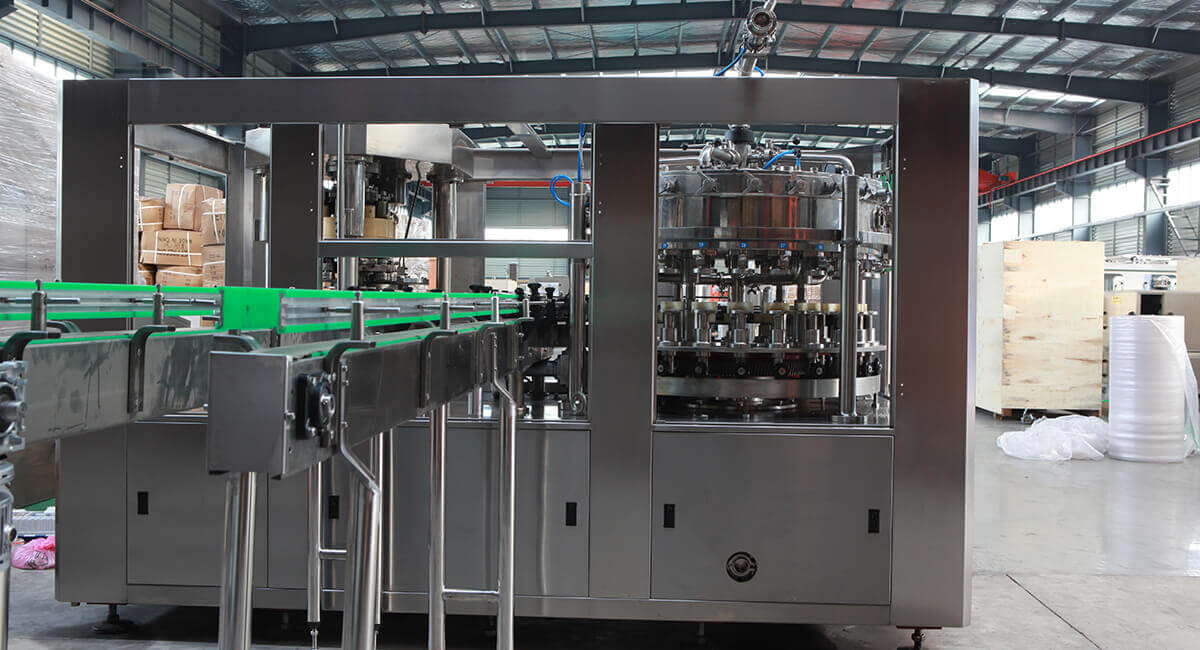

Filling Machine

The machine is suitable for filling and sealing beverage or brewage industry, it have such features as rapid filling and sealing speed, consistent height from the liquid level in the can to the can mouth after filling, stable machine operation, good sealing quality, beautiful and decent appearance, convenient use and maintenance, touch screen operation, frequency conversion speed adjustment,etc. It is the most ideal filling and sealing device for beverage plants and brew houses

Can Depalletizer Machine

Widely Used

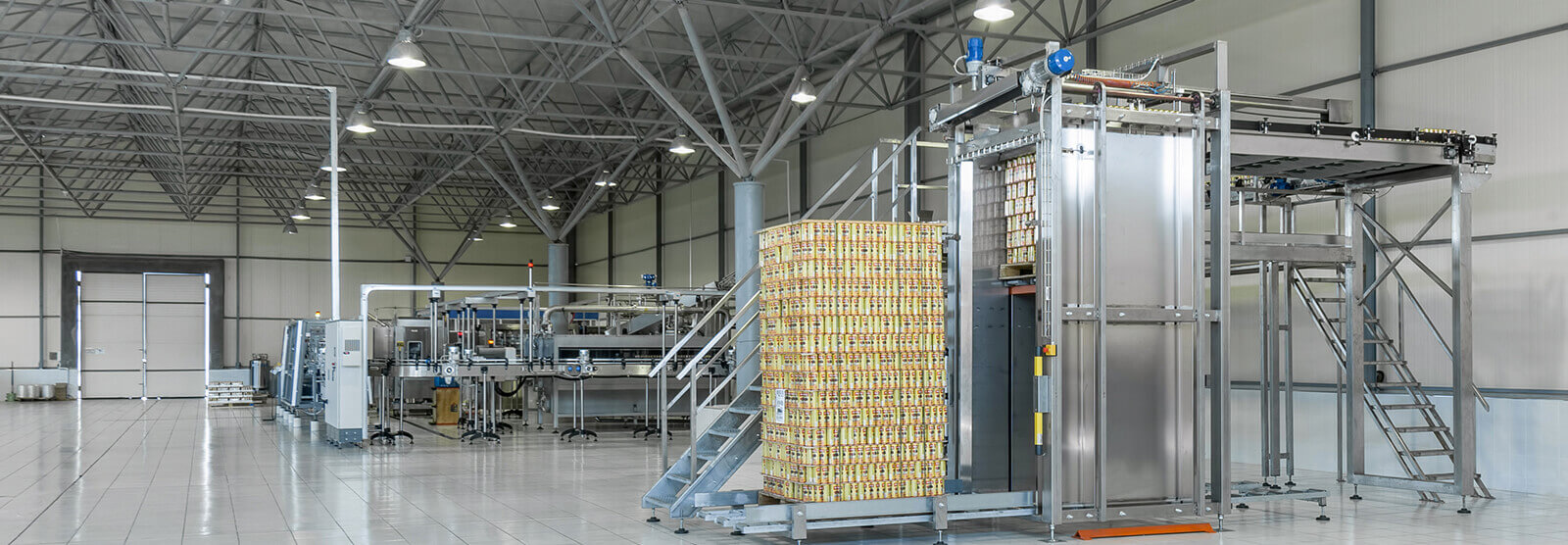

Can Depalletizer Machine

It can replace the manual can arrangement, increase production efficiency, it is an indispensable ideal device for middle and large sized beverage plants, plc programmable computer automatic controller, photo-electricity switch, over travel-limit switch and pneumatic control,etc, use the famous brand from germany and japan and taiwan

Can Line Auxiliary machine

Widely Used

Can Line Auxiliary machine

Including Liquid level check, vacuum leakage test, liquid nitrogen dosing machine

Pasteurizer tunnel

Widely Used

Pasteurizer tunnel

With various zones treatment of circulated cooling water and the treatment time can be adjusted according to the user’s requirement. The machine are specially designed for the pasteurizer tunnel, can be used for the carbonated drink, juice, beer, food product

Packing Machine

Widely Used

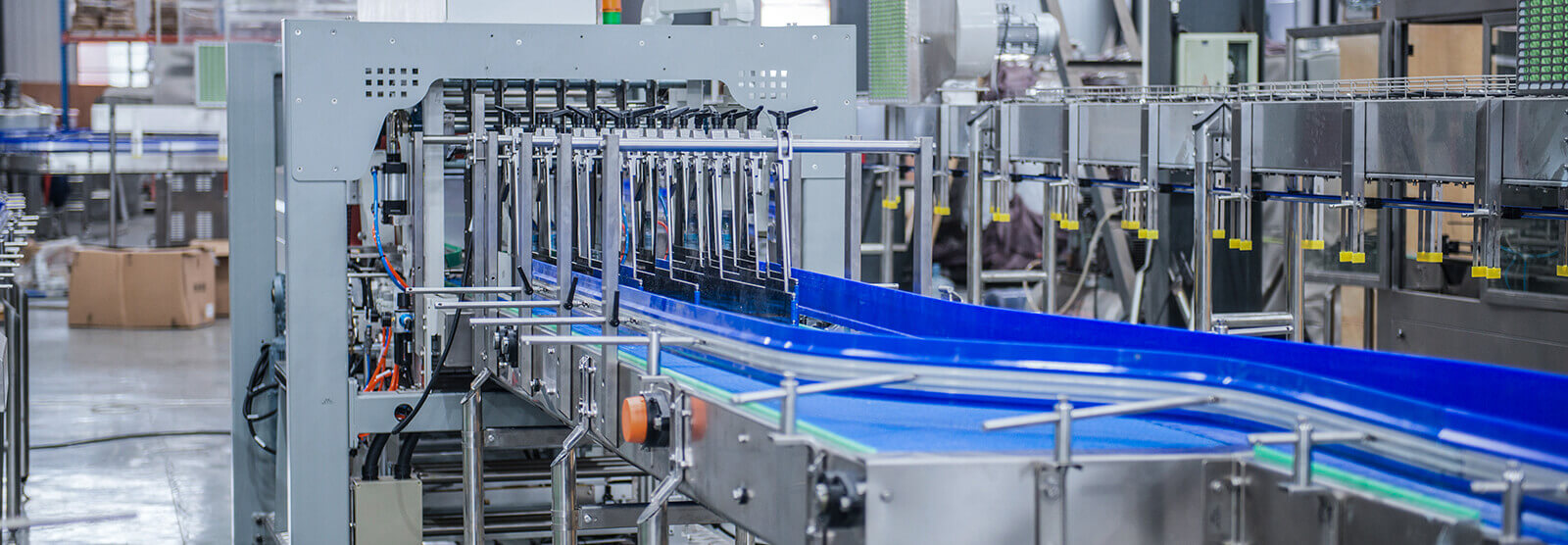

Packing Machine

As customer request and market demand, we provide the better solution for the final product package, like film shrink pacakge, film with half tray and carton box package.

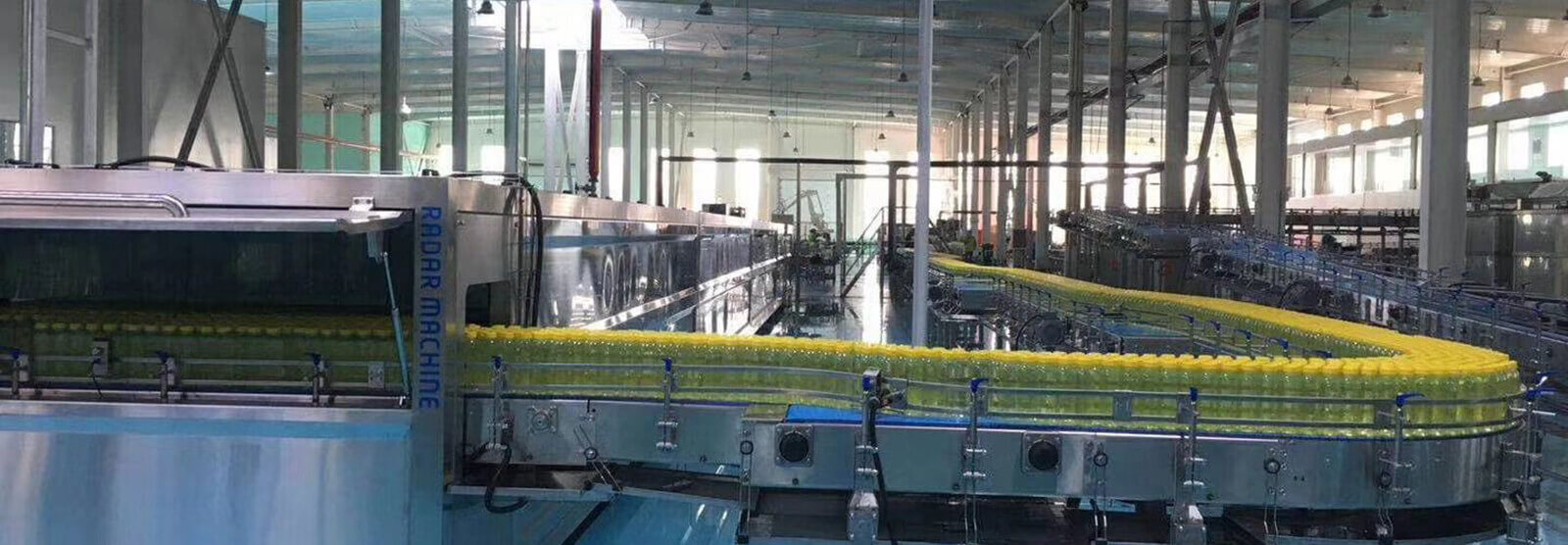

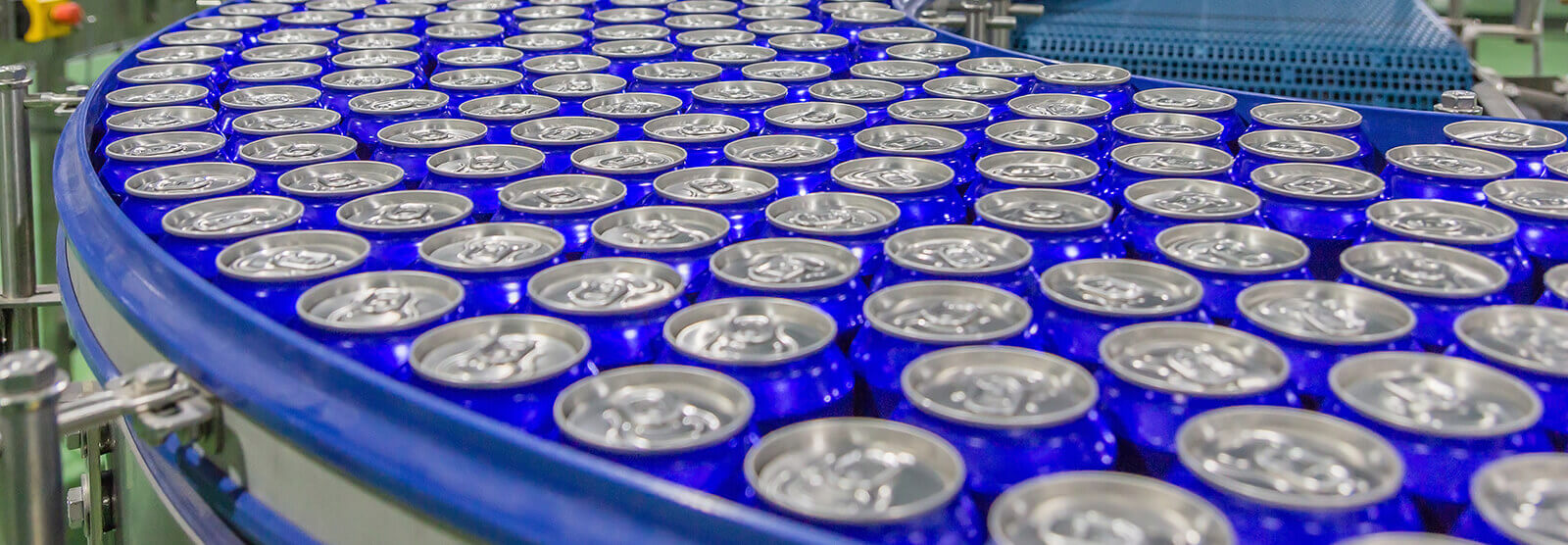

Conveyor system

Widely Used

Conveyor system

We design the factory layout based on customer factory sizes, whole line design is based on famous brand motors and automatic lubricant system, and with less power consumption, and save space.
