Juice Filling Machine Production Line

Juice Filling Line

We supply complete solution for the juice production line, including Water treatment system / Syrup melting system / Juice Mixing system / Sterilizer system / Washing filling and capping machine / Pasteurizer tunnel / Bottle Juice Filling Machine / Hot Juice Filling Machine / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system

Date Information

Model	RCGF14-12-5	RCGF16-16-5	RCGF24-24-8	RCGF32-32-10	RCGF40-40-12
Capacity	2000-3000bph	4000-5000bph	6000-8000bph	10000-12000bph	12000-15000bph
Occupy Area	400㎡	500㎡	800㎡	1200㎡	1500㎡
Power Consumption	150KW	350KW	500KW	800KW	1000KW
Number of Labors	10	10	8	10	10
Roughly Budget	$100,000-120,000	$160,000-250,000	$300,000-500,000	$500,000-800,000	$800,000-1,200,000

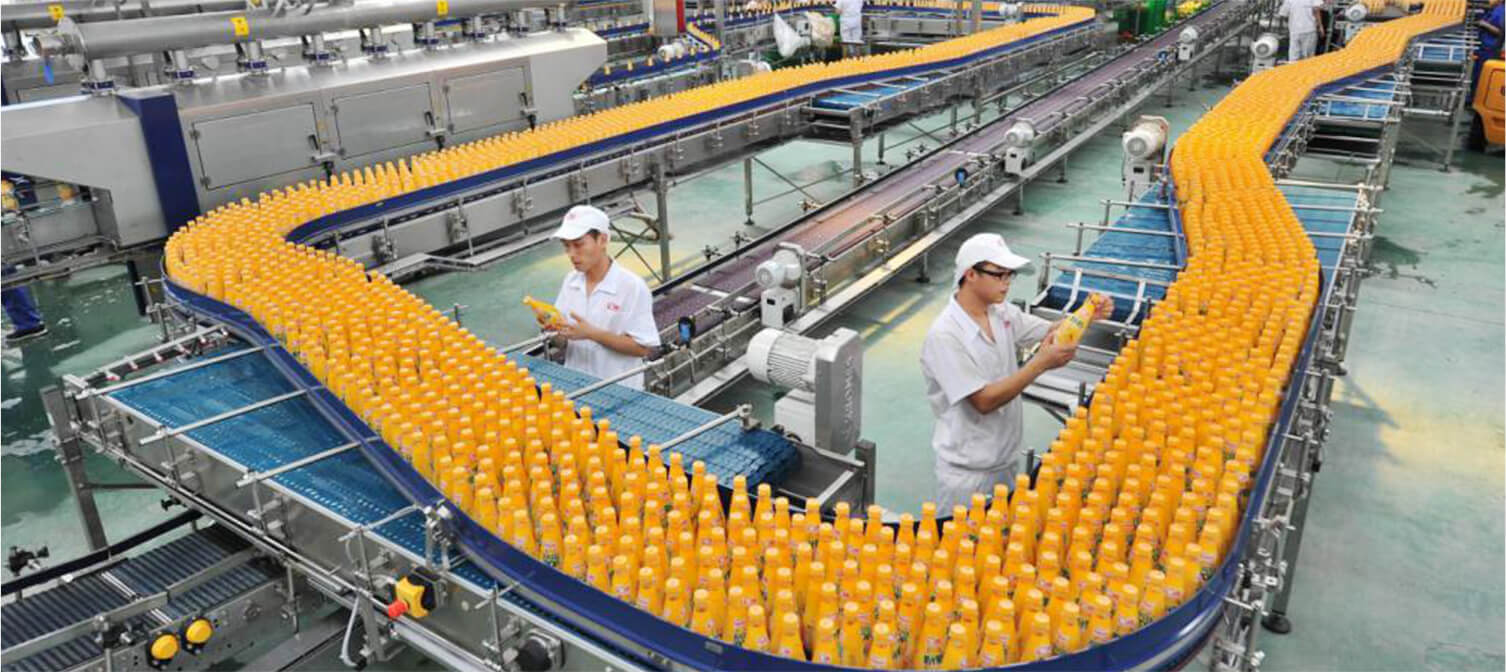

Watch The Video

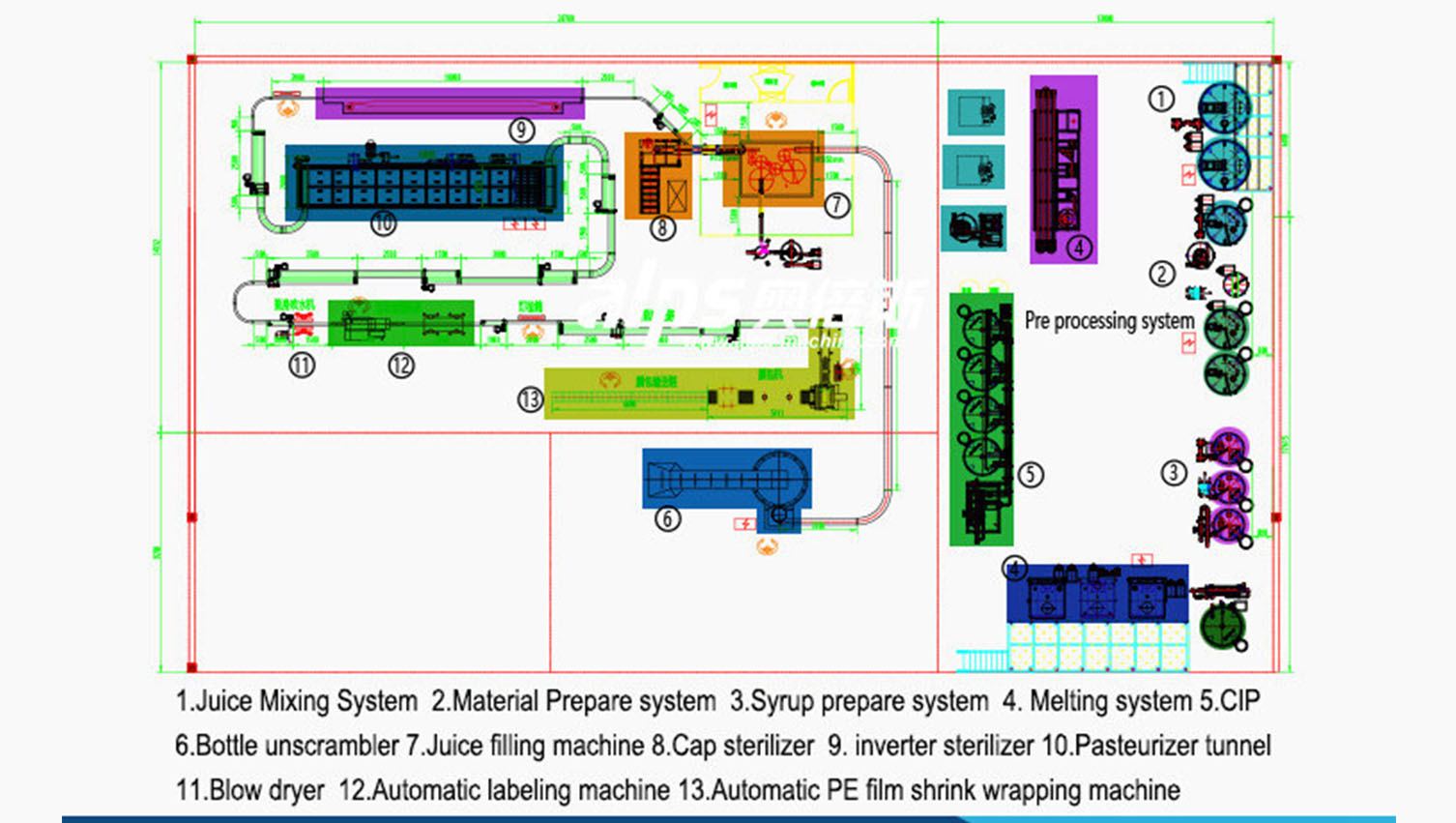

CAD Configuration

Whole line introduction

Injection Molding Machine

Widely Used

Injection Molding Machine

For the PET Preform and Cap production, Adopting Europe technology, hydraulic unit adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English language to use. Close-loop PID temperature control with the advantage of high precision.

Water Treatment

Widely Used

Water Treatment

According to customer's water source analysis report and the final water standard required, we will suggest customer to choose the suitable water treatment plants.

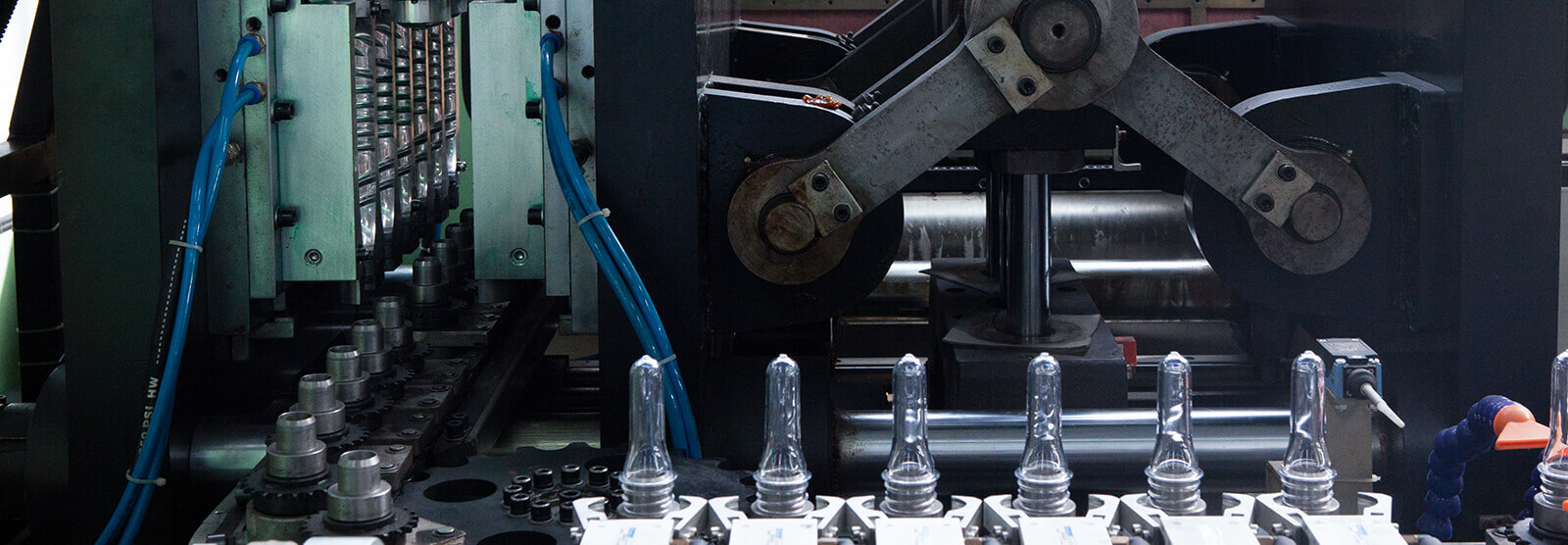

Blowing

Widely Used

Blowing

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. It is necessary for the water filling production line, 330ml-2L water filling machine line.

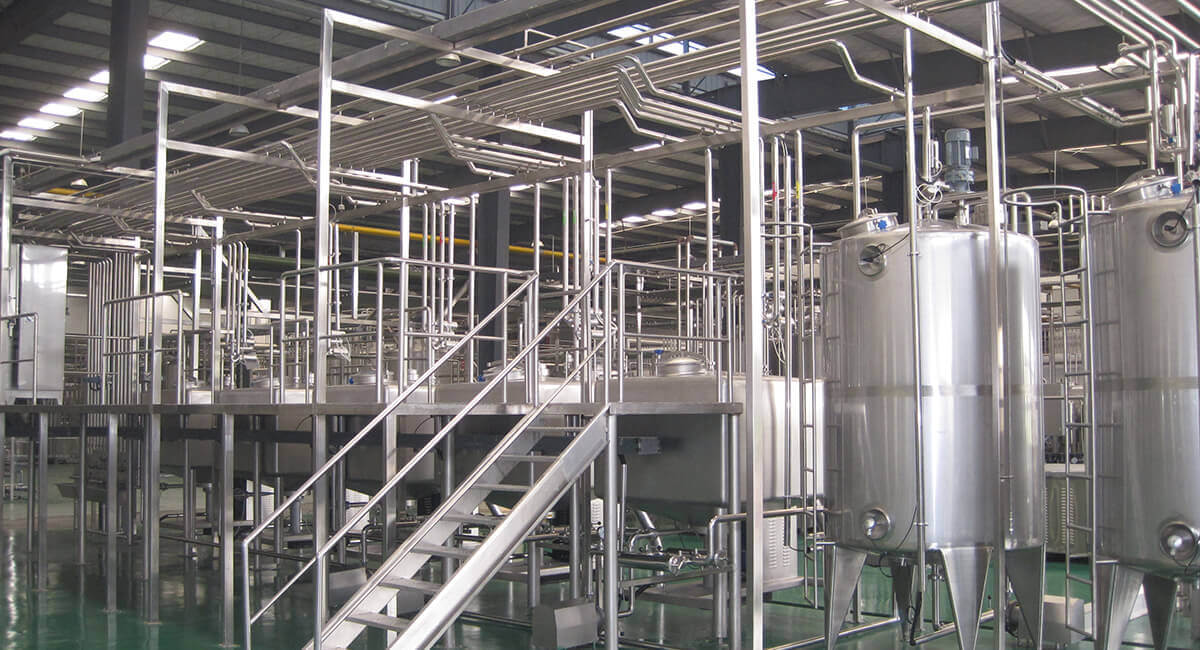

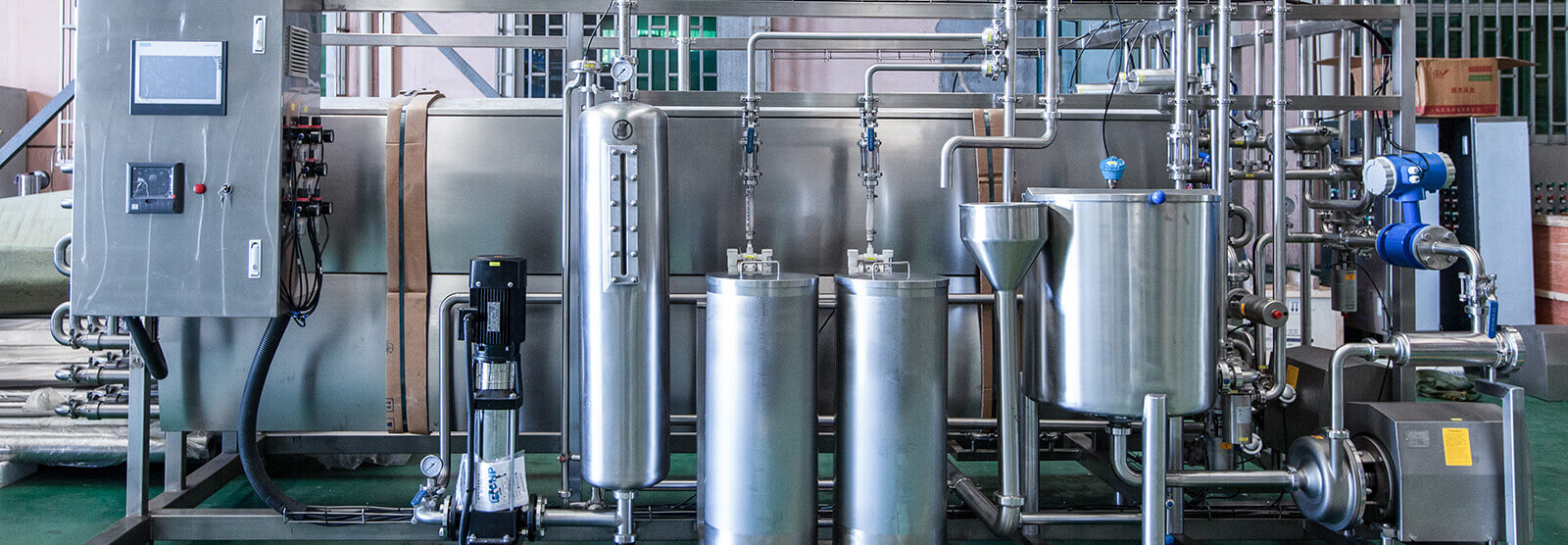

Juice Processing

Widely Used

Juice Processing

Complete juice processing system with reasonable mixing and sterilization technology, not only can be suitable for common products, but also can satisfy special requirements of customers, for example juice, milk, cream or high viscosity products containing fiber and large pulp granules.

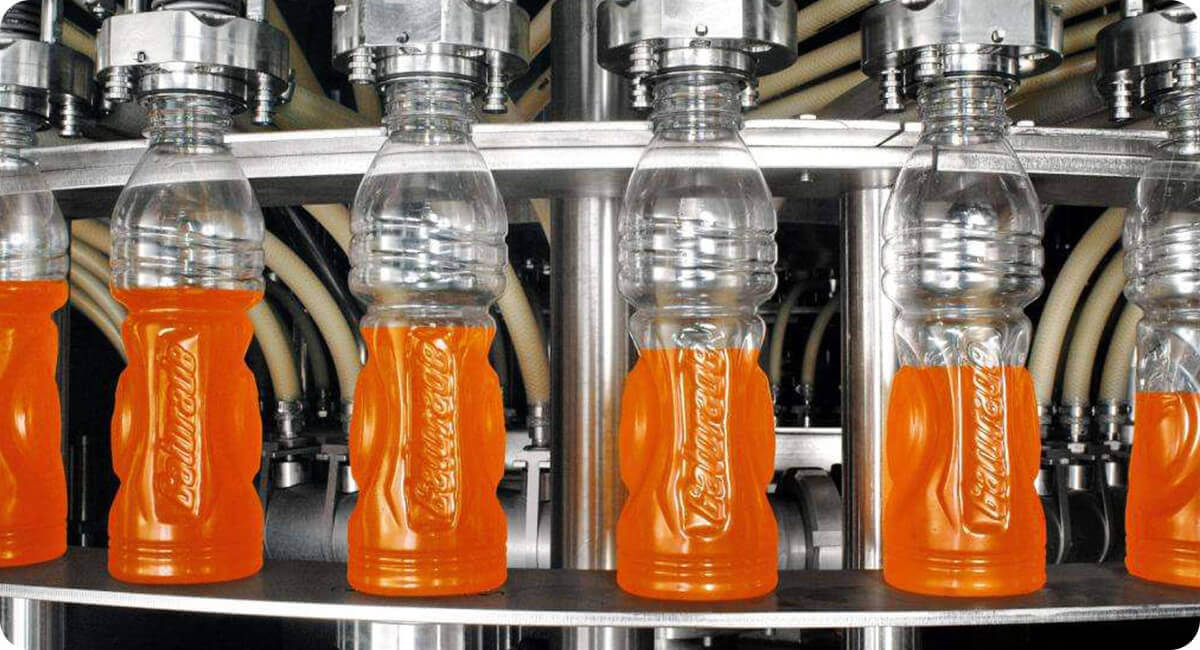

Filling

Widely Used

Filling

This water bottling machine line is mainly used for filling fruit juice. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The micro pressure filling operation of the new type is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

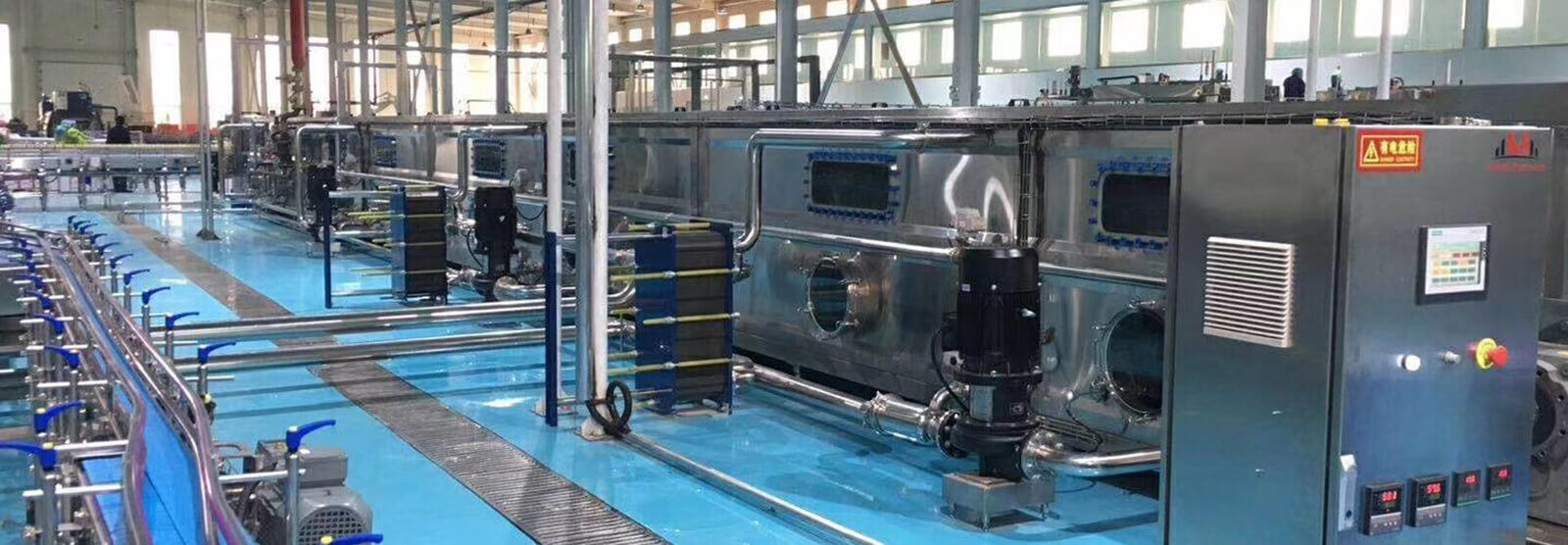

Pasteurizer tunnel

Widely Used

Pasteurizer tunnel

Used for after packing sterilizer, with different zones treatment of circulated cooling water and the treatment time can be adjusted according to the user’s requirement. The machine can applicable to all types non-carbonated material such as tea, juice, sauce.

PVC / OPP labeling

Widely Used

PVC / OPP labeling

We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, Adhesive stick label, Wet glue label

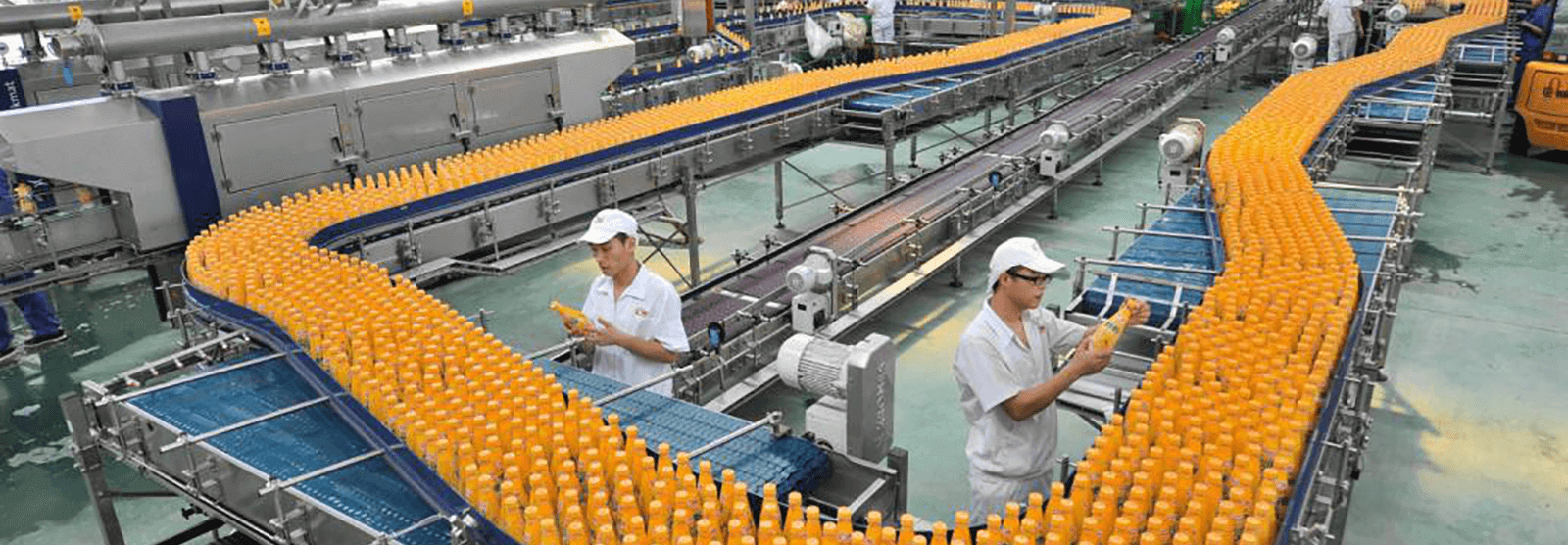

Conveyor

Widely Used

Conveyor

We design the factory layout based on customer factory sizes, whole line design is based on famous brand motors and automatic lubricant system, and with less power consumption, and save space.

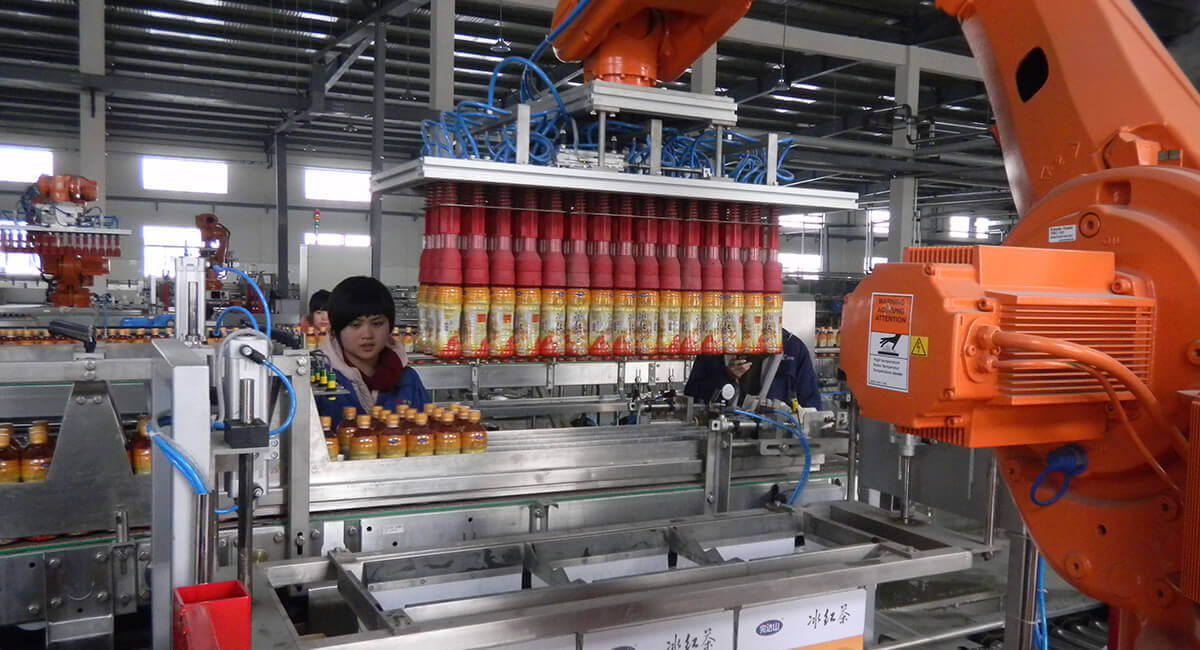

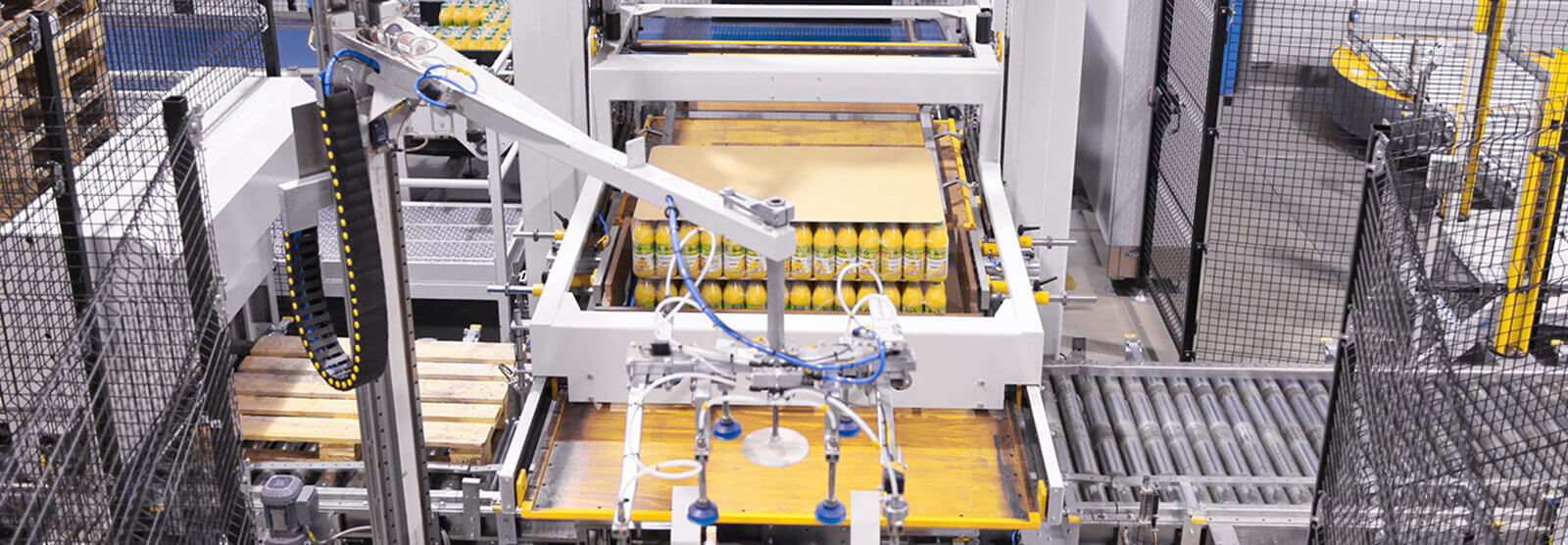

Packing

Widely Used

Packing

As customer request and market demand, we provide the better solution for the final product package.

We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, Adhesive stick label, Wet glue label, and packing machine have the film shrink machine and carton box package.
