In today’s bottled water industry, where hygiene, efficiency, and speed are paramount, manufacturers are turning to more integrated and automated solutions. One such solution leading the way is the Combiblock water filling system. This advanced machine combines three essential processes—bottle blowing, filling, and capping—into a single compact system that streamlines production while maintaining the highest hygiene standards.
In this guide, we’ll walk you through how a Combiblock works, step-by-step, and why it has become a game-changer for water bottling facilities worldwide.
A Combiblock system is an all-in-one machine that performs the three key functions in water bottling:
Blowing PET preforms into bottles.
Filling those bottles with purified water.
Capping them securely for distribution.
Unlike traditional bottling lines that use separate machines and conveyor systems, a Combiblock integrates all these processes within one enclosed, sterile environment. This integration not only improves operational efficiency but also drastically reduces the risk of contamination and production errors.
1. Preform Loading
The process begins with PET preforms loaded into an automatic feeding system. These preforms are precisely handled to avoid damage or contamination before entering the heating section.

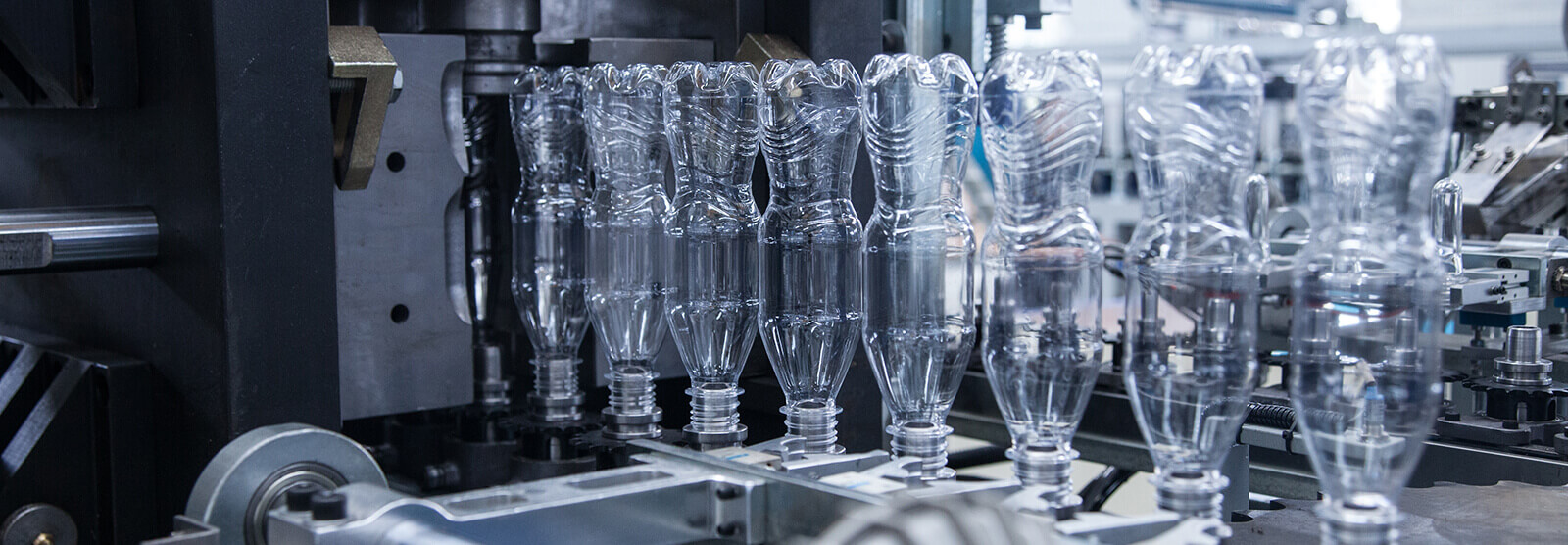

2. Bottle Blowing
Inside the blow molding module:
The preforms are heated evenly using infrared ovens.
Once heated, they are transferred to a mold where high-pressure air is used to blow them into the desired bottle shape.
Each bottle is formed with consistency and strength to ensure durability during handling and transport.
3. Bottle Transfer
Once formed, bottles are transferred to the filling module via a neck-handling system. This method avoids contact with the inner bottle surfaces, maintaining sterility. The transfer is smooth and completely enclosed, minimizing environmental exposure.

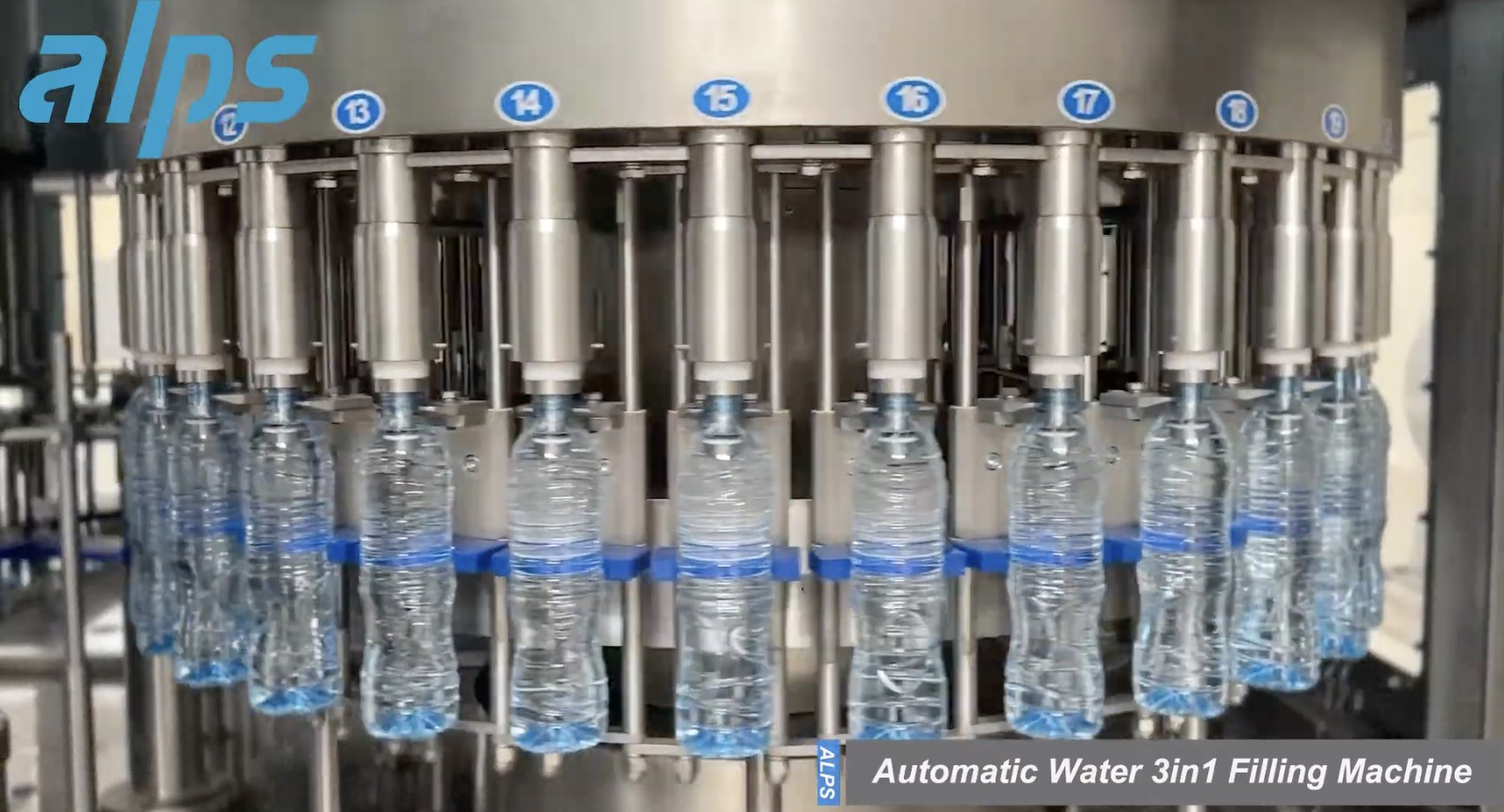

4. Filling Process
Depending on the application, filling can be done using gravity or isobaric technology. Key features include:
Accurate fill levels controlled by sensors.
Hygienic valves to prevent dripping or splashing.
Temperature-controlled water supply for consistent product quality.
5. Capping Process
The capping module ensures a perfect seal:
Caps may be sterilized prior to application.
Servo-controlled capping heads apply consistent torque for secure sealing.
Non-contact cap delivery further enhances hygiene.
6. Bottle Discharge
Finished bottles are gently transferred to downstream equipment for labeling, packing, or palletizing. Optional inspection systems can check fill levels, cap alignment, and bottle integrity before discharge.
Higher Efficiency: By eliminating inter-machine transport, production speed increases significantly.
Smaller Footprint: Compact design saves valuable factory space.
Superior Hygiene: Closed-loop processing minimizes contamination risks.
Reduced Energy and Water Consumption: Optimized resource use contributes to sustainability.
Lower Operational Costs: Fewer machines mean less maintenance and reduced labor needs.
Reliable Product Quality: Uniform bottles, precise fill levels, and secure caps ensure consistent results.
When evaluating a Combiblock system, consider the following specifications:
Production Capacity: Models are available for different BPH (bottles per hour) ranges.
Bottle Size Compatibility: Some systems can handle multiple sizes with quick changeovers.
Advanced Controls: PLCs and touch-screen HMIs make operation and monitoring easy.
Sterilization Options: UV sterilization, CIP (Clean-In-Place), and aseptic components for ultra-clean production.
Modular Design: Allows for easy upgrades or integration with existing lines.
Combiblock systems are ideal for:
Medium to large bottled water factories seeking high-output solutions.
Startups needing space-efficient, all-in-one bottling systems.
Hygiene-sensitive applications, such as premium bottled water or export-ready products.
Manufacturers aiming to cut operating costs while boosting consistency and speed.
To ensure smooth operation, manufacturers should prepare:
Cleanroom-like conditions for installation.
Adequate utilities: compressed air, clean water, and stable power supply.
Operator training, which is often included with system delivery.
A maintenance plan to maximize machine lifespan, with options for remote support or spare parts packages.
The Combiblock water filling system is a powerful, efficient, and hygienic solution that transforms the traditional bottling process. By combining blowing, filling, and capping into one intelligent unit, manufacturers can achieve faster production, superior product quality, and lower operating costs—all while maximizing space and minimizing contamination.
Alps Machine is a leading manufacturer of turnkey beverage packaging solutions, specializing in high-performance Combiblock filling systems. With decades of experience and a commitment to innovation, we deliver advanced, reliable, and customizable bottling equipment to clients around the world. Whether you're upgrading your current line or launching a new production facility, Alps Machine is your trusted partner for efficient, hygienic, and scalable water bottling solutions.
Contact us today to learn how we can help streamline your bottling operations.
