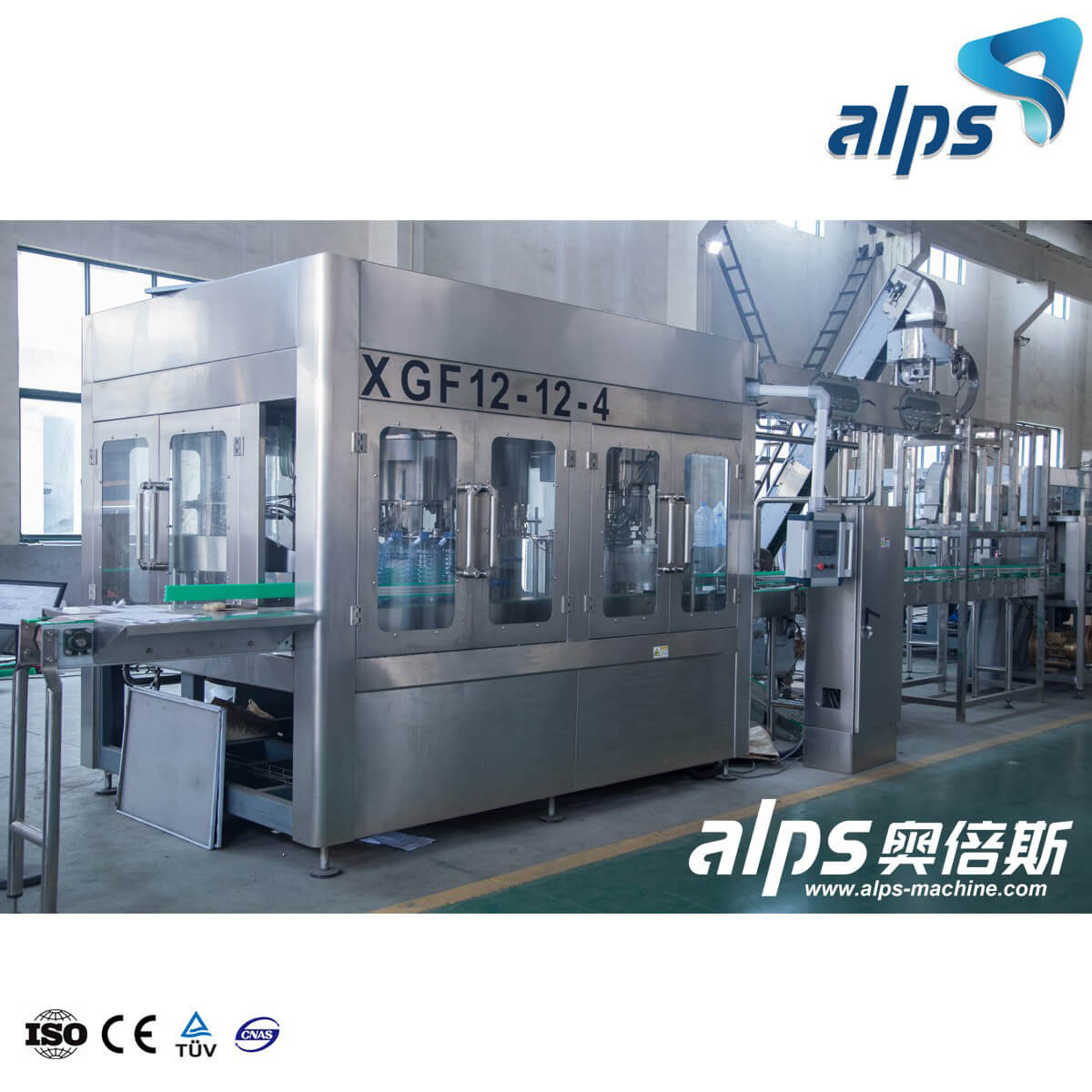

1500BPH 5L / 10L Bottle Rotary Type Water Filling Machine (Model : XGF12-12-4 ) 1500BPH 5L / 10L  Bottle Rotary Type Water Filling Machine (Model : XGF12-12-4 )

Capacity : 1500~2000 Barrels Per Hour Bottle Sizes :5L ~ 10L Function :Washing Filling Capping Machine

Quantity:
Share this:

Introduction

This Machine specially for 5L - 10L Big bottle drinking water ,It integrates bottle washing ,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,the washing machine uses multi washing liquid spray and thimerosal spray ,this thimerosal can be circularly ,the capping machine can cap barrel automaticlly ,this line equips with water spraying device in order to ensure those caps sterilie and clean ,it also can automatically carry out barrel ,washing ,sterilizing ,filling ,capping ,counting and products discharging ,with complete funciton ,modern design and high degree of automation .it is a new kind of barreled water auto production line ,which integrates mechanism ,electricity and pneumatics technologies together


Application :

Function :Rinsng / Filling / Capping System
Suitable for:  Big Bottle WaterBottle sizes : 5L-10L
Filling system:  Gravity FillingCapacity:  1500 ~2000BPH
Application:  Drinking water / Pure water / Mineral Water / Spring water



Technical Data

Name:  XGF 5L / 10L  Water Filling Machine
Model XGF12-12-4
Capacity: (5L)1500 -2000 Bottles/hour
Filling heads12 pcs
Suitable bottle volume5L & 10L
Compressor air 0.4 ~0.6 Mpa
Filling type Normal Pressure
Application Drinking water / Mineral water / Pure water
Total power4.5kw
Overall dimensions3.2X2.0m
Height 2.3m
Weight     3000kg


Details Description

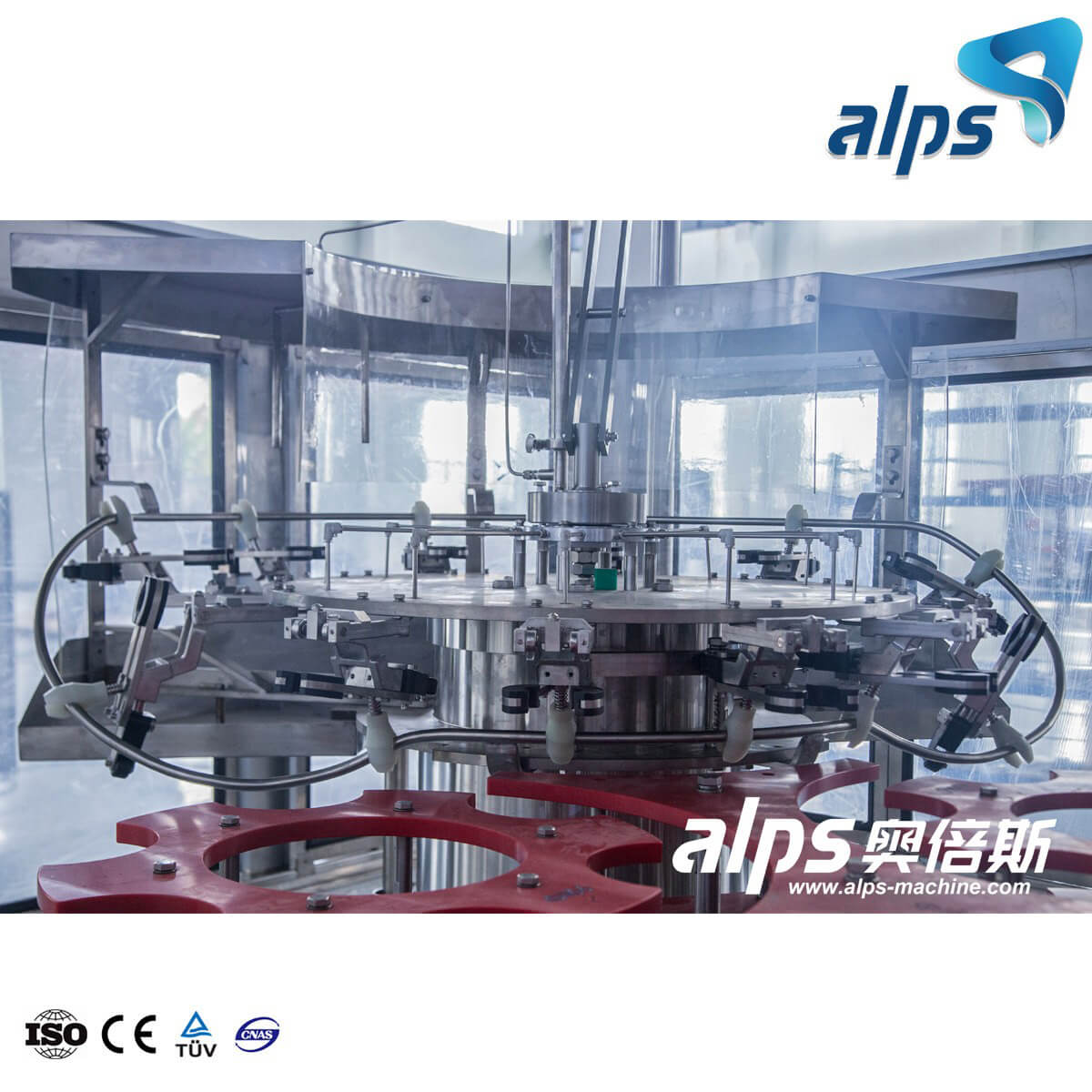

Rinsing part

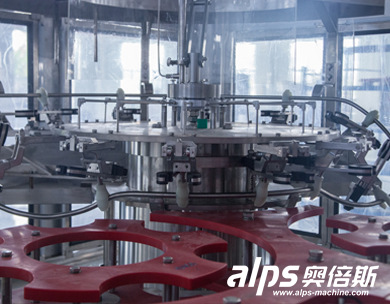

Rinsing part

>>12 steps washing procedure: 1. pre-washing, 2&3. alkali washing, 4.dropping 5&6 recycle water washing 7. dropping 8&9 disinfect water washing 10&11 finish water washing 12.dropping

>>All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

>>304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

>>304 stainless steel Rinsing pumps

>> All food grade SUS304/316 design

>> Effectively clean bottle and save water

>> Resting waiting for water drops

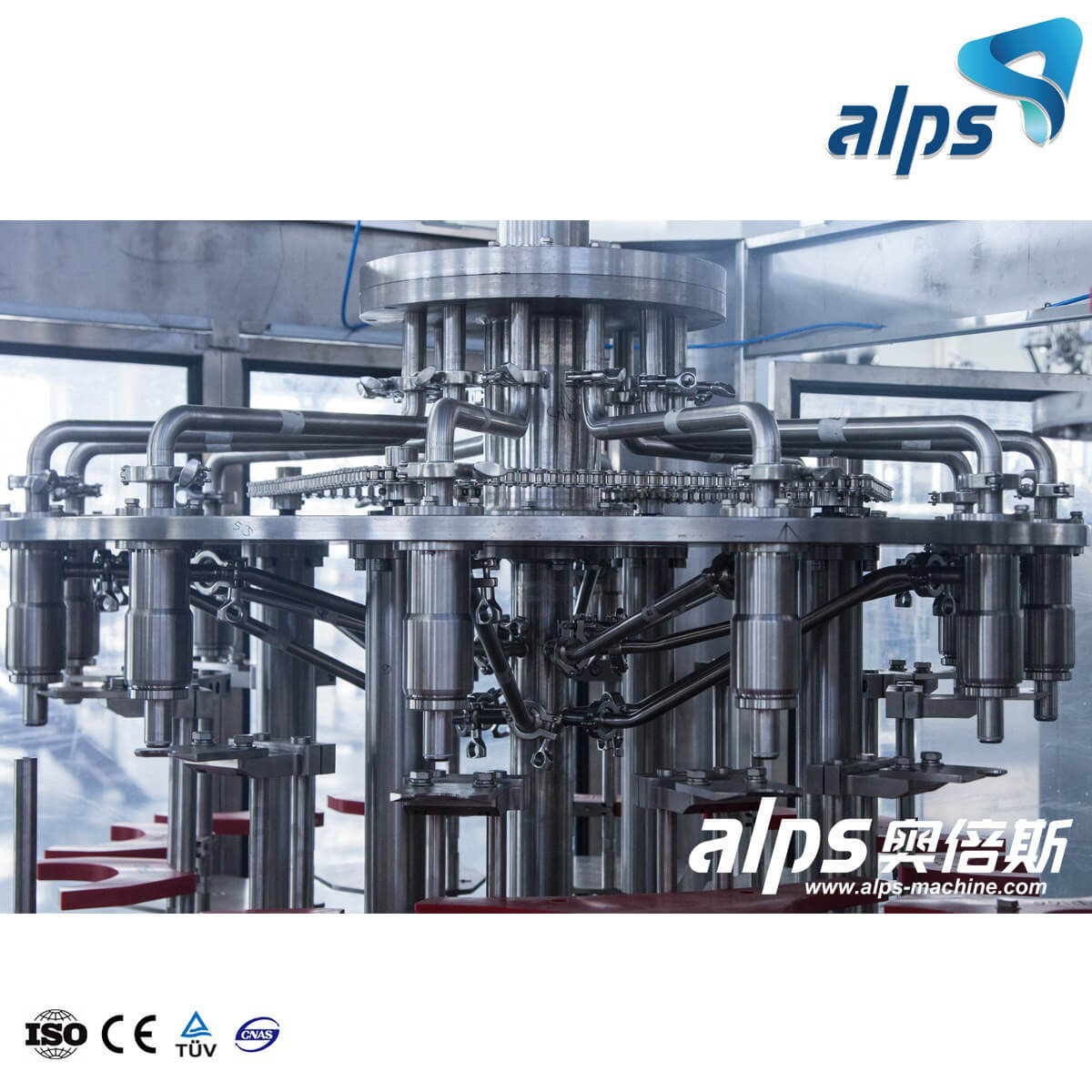

Filling part

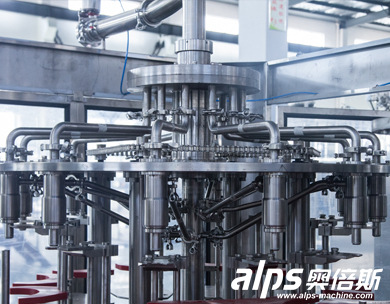

Filling part

>>High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily

>>All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

>> Filling valve, guide rail, elevating device, etc.

>> Gravity filling type (No touch filling type)

>> Filling volume adjustable

>> All food grade SUS304/316 design, harmless for beverages and easy to clean

>>No bottle no filling

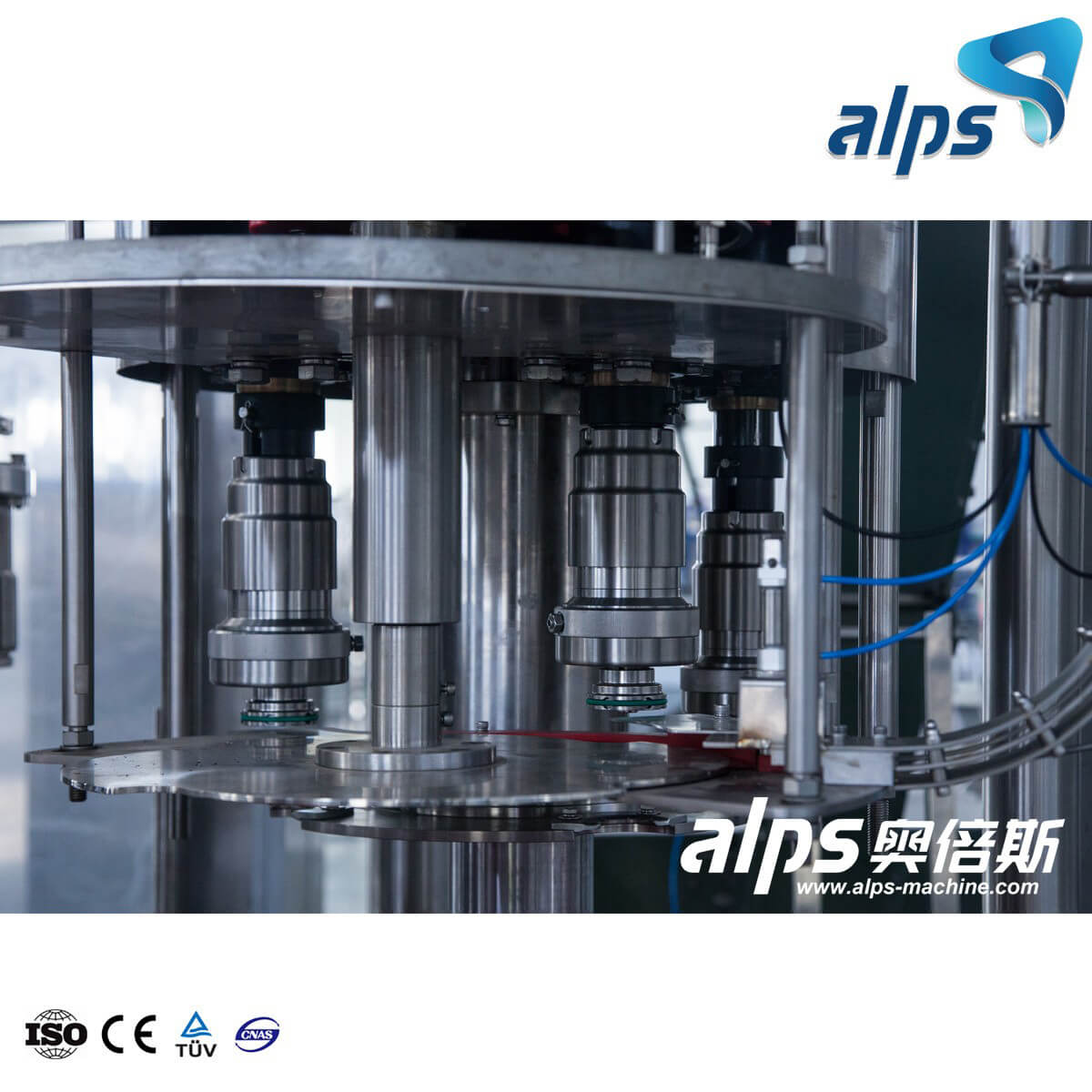

Capping part

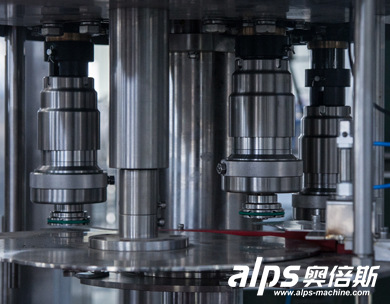

Capping part

>>Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

>>All 304stainless steel construction

>> Cap unscrambler, cap drop rail and capper

>> Minimum bottle crash during capping

>> No bottle no capping
